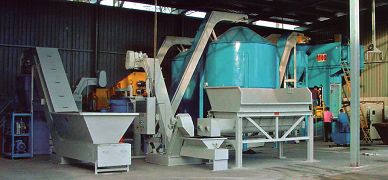

MHG Briquetting Machines

 • Increase the value of your swarf by up to £100 per tonne
 • Saves transport costs through the reduction of volume of swarf and  on storage space
 • Separates emulsions from swarf returning high value emulsion to the manufacturing process
 • Produces high density briquettes, giving higher yield during smelting
 • Assist you in meeting Health & Safety requirements and ISO 14000 standards
 • Removes up to 98% of the residual coolant and cutting oils during compression.
 • Recovery of emulsion oil is 10/15% of weight
 • Volume reduction of up to 20:1


 Model No: GB - 1H - 3C ---- 300/90 600/90 1000/170
 Press force t 300 500 1000
 Briquette Diameter mm 90 130 170
 Pressure kg/cm² 4000 4000 4000
Briquette height
approx		 Cast Iron mm 60 ÷ 110 80 ÷ 150 100 ÷ 190
Steel 60 ÷ 110 80 ÷ 150 100 ÷ 190
Copper-Bronze 60 ÷ 120 80 ÷ 160 100 ÷ 2000
Aluminium 60 ÷ 90 80 ÷ 130 100 ÷ 170
Density
approx		 Cast Iron kg/dm³ 5.2 ÷ 5.8 5.2 ÷ 5.8 5.2 ÷ 5.8
Steel 5 ÷ 5.4 5 ÷ 5.4 5 ÷ 5.4
Copper-Bronze 6.2 ÷ 6.8 6.2 ÷ 6.8 6.2 ÷ 6.8
Aluminium 2.3 ÷ 2.6 2.3 ÷ 2.6 2.3 ÷ 2.6
Production
max - min
approx		 Cast Iron t/h 0.6 ÷ 1.2 1.6 ÷ 3 3.5 ÷ 7
Steel 0.56 ÷ 1.1 1.4 ÷ 2.7 3.1 ÷ 6.2
Copper-Bronze 0.82 ÷ 1.64 2.34 ÷ 4.3 4.2 ÷ 8.3
Aluminium 0.28 ÷ 0.54 0.76 ÷ 1.2 1.6 ÷ 2.7
Power kw 85 175 350



Case Study:
Mecobusa/Nissan last year installed a briquetting system. They are currently briquetting 40 Tons per day and recovering 8000 litres per day of emulsion.  The cost of the installation was 1,000,000 Euros with pay back in under 12 months.


• Single, Double & Triple Action Hydraulic Presses

MHG also manufacture both C frame and double sided presses from 400KN to 25,00 KN.  Presses for sheet metal stamping - metal doors, trays, sinks, white line goods from 400 to 50,000 KN.  Spotting presses for dies and moulds, principally for the automotive and aerospace industries and die shops in general from 700 to 10,000KN.  MHG Double and triple action presses for deep drawing pressure cookers, pots & pans, automotive, etc.

• Spotting and try out of dies
• Flanging and straightening presses
• Drawing and Stamping
• Hydrostatic pipe testing
• Vulcanizing

www.mhg.es
Click image to visit the MHG web site.  There is extensive information on the whole of the MHG product range.
